Creating the RHIB's

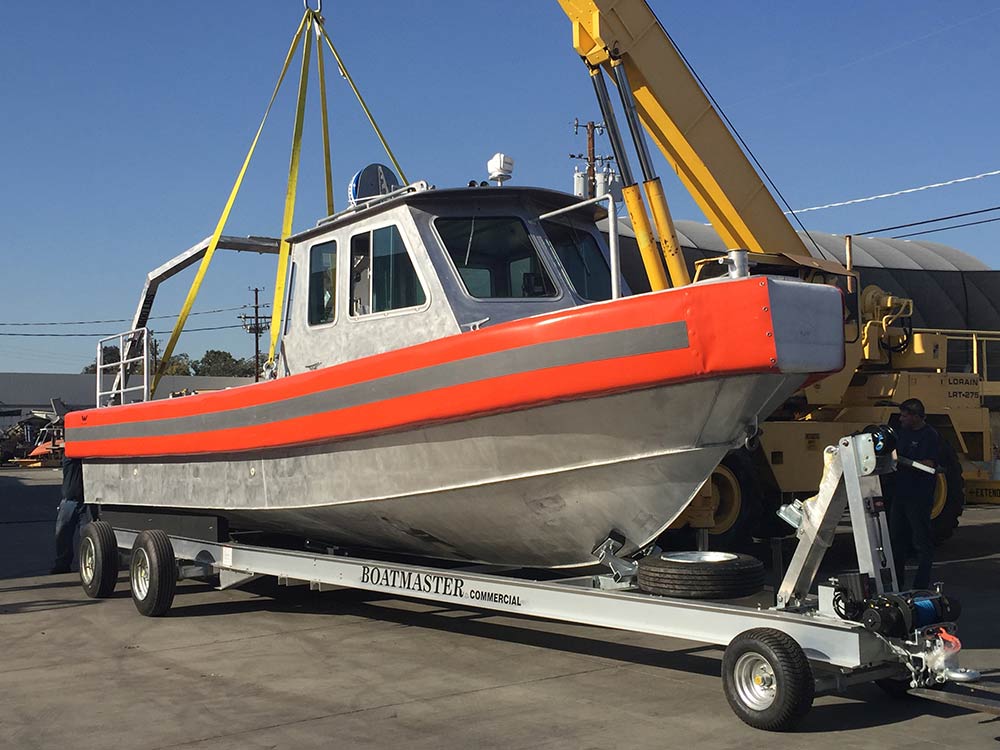

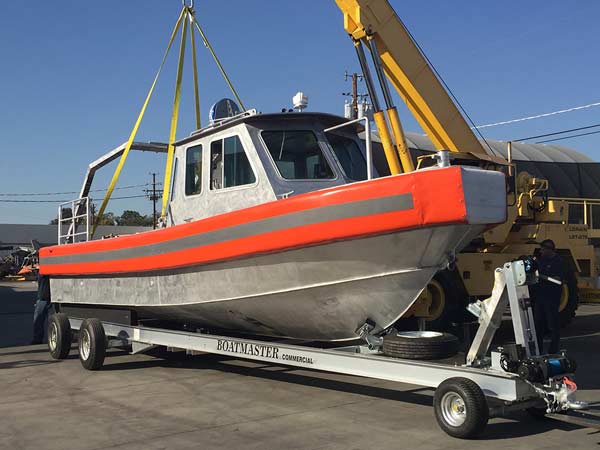

the first boat being lowered onto its trailer

The first RHIB being fitted to its trailer during the final building phase (photo by Ethan Norris)

So, what's a rigid hull inflatable boat? Obviously if the hull is

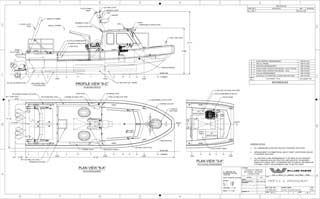

RHIB plan and profile
   The vessel plan and profile (865 kb PDF)

"rigid" (aluminum) it is not "inflatable"...actually the only inflatable portion is the pontoon around the side. The 2012 Blue Ribbon Panel report recommended that this sort of craft be obtained to meet the future needs of the station. Among its key features particularly as compared to the fleet of Zodiacs now in use--a greatly increased range, improved safety features, better support for research equipment, and...an enclosed, heated (!) pilothouse.

A few of the basic specs: Length: 33.5 ft; Breadth: 10 ft; Draft: 2 ft 4 in; Displacement: 14,500 lbs; Weight on trailer: 16,000 lbs; Engines: 2 Volvo diesel Penta D4, crank horsepower 450 hp; Crew: 1; Passengers: 7 (4 inside wheelhouse, more if they are friendly). The complete spec book is here.

Construction of the first of the two vessels began in early 2016, by Willard Marine, based in Anaheim, CA (although the early hull construction was in Alabama). These vessels were custom designed for the Antarctic program, although Willard has constructed similar vessels for the military, NOAA, and law enforcement agencies.

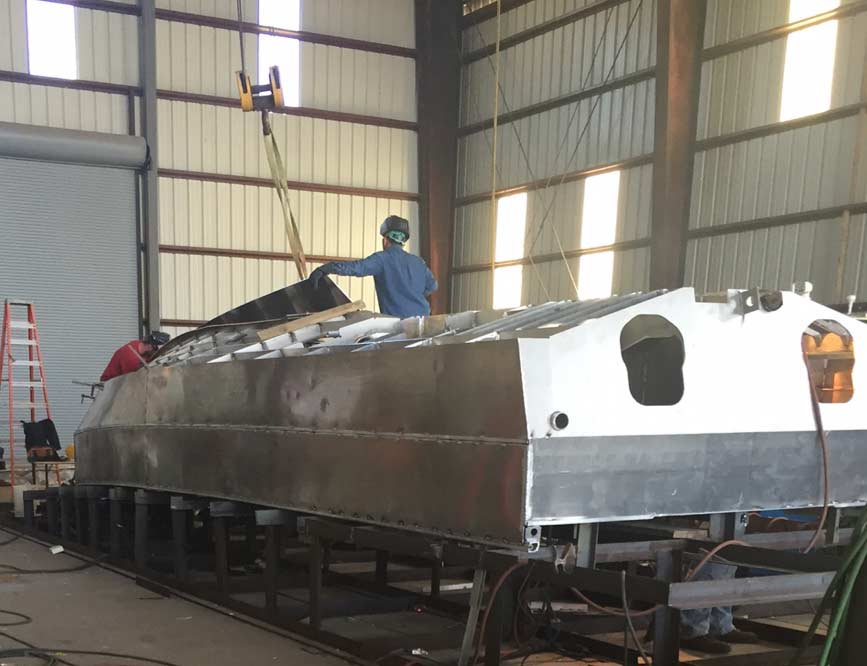

installing the hull plating
Installing the hull plating.

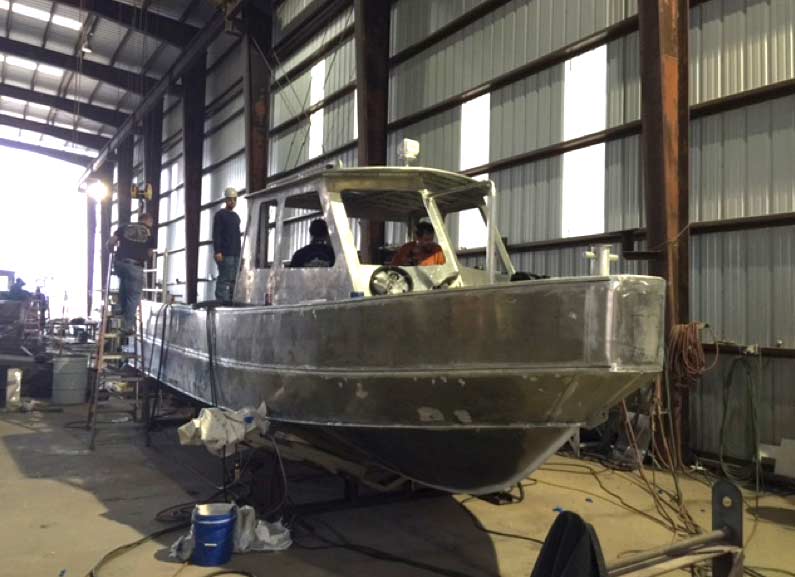

installing the wheelhouse cabin
Welding the wheelhouse to the hull structure

Above, a couple of sample photos of the hull and superstructure construction. These and other photos, as well as several weekly construction reports, are from this Future USAP page. The hulls of both vessels were then shipped to California for the final phases of construction, followed by sea trials of the first hull in waters off of Long Beach.

RHIB sea trials off Long Beach
A screen grab from the video of the July 2016 sea trials.

This, the photo at right, and others, are from this Future USAP page.

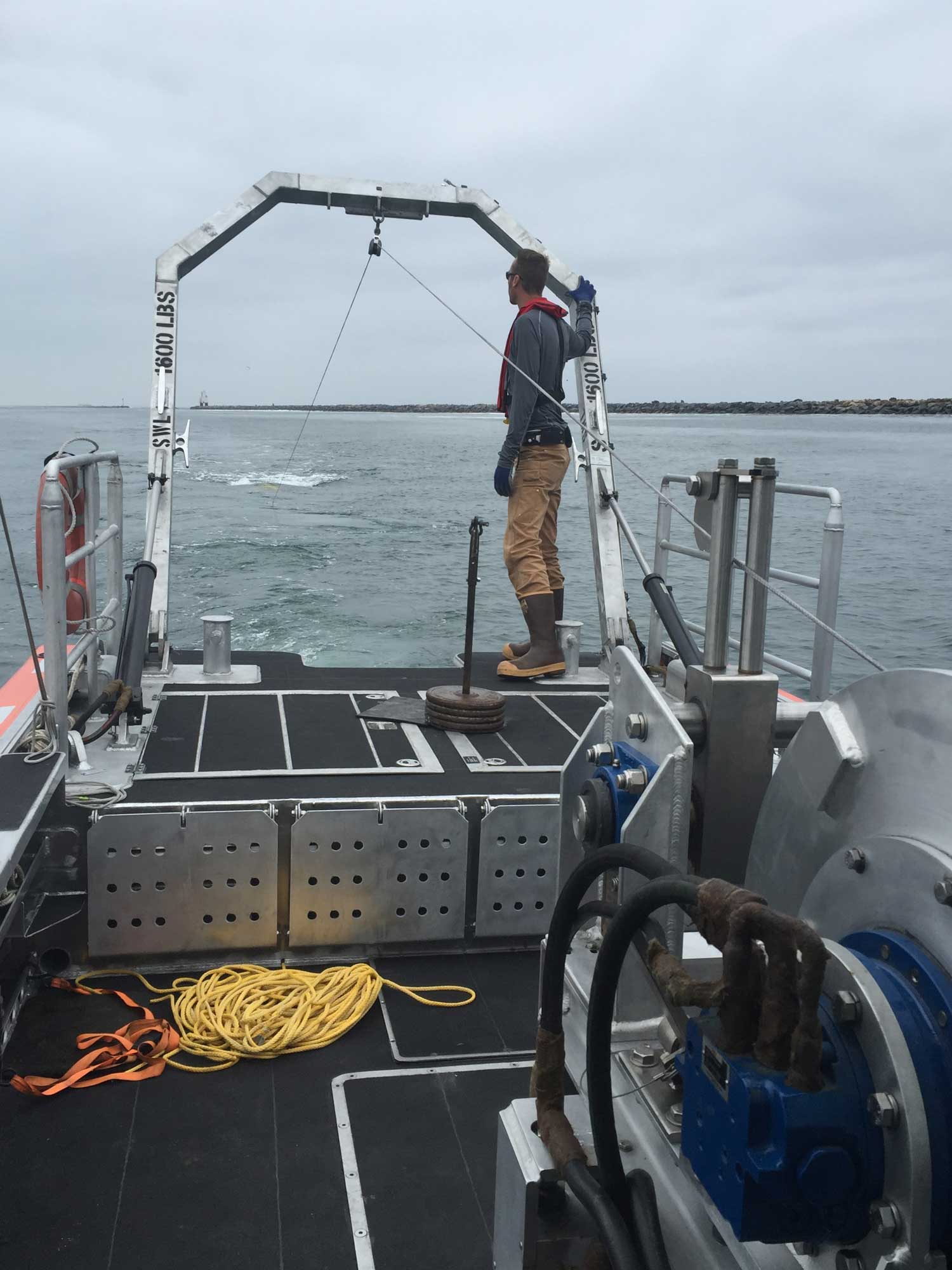

testing the winch and A-frame



During the sea trials, here is Russ Hein testing the towing performance off the stern A-frame while using the winch from Interocean Research.

The first of the two vessels was shipped to Palmer Station during the 2016-17 summer...the second is supposed to arrive a few months later. The takeaway is this quote from the video: "They will extend the safe boating range to 20 miles from station from the current 2 to 3 miles."

Also check out this October 2016 Antarctic Sun article about these new boats.
